• Versatile Clinical Use: Suitable for imaging the head, chest, spine, and limbs
• True Mobility: Operates efficiently in both indoor and outdoor environments
• Battery-Powered Backup: Capture up to 200–500 images during power outages
• Dual Control Options: Supports both wired and wireless operation
• High-Frequency Performance: Ensures stable output and clear image quality

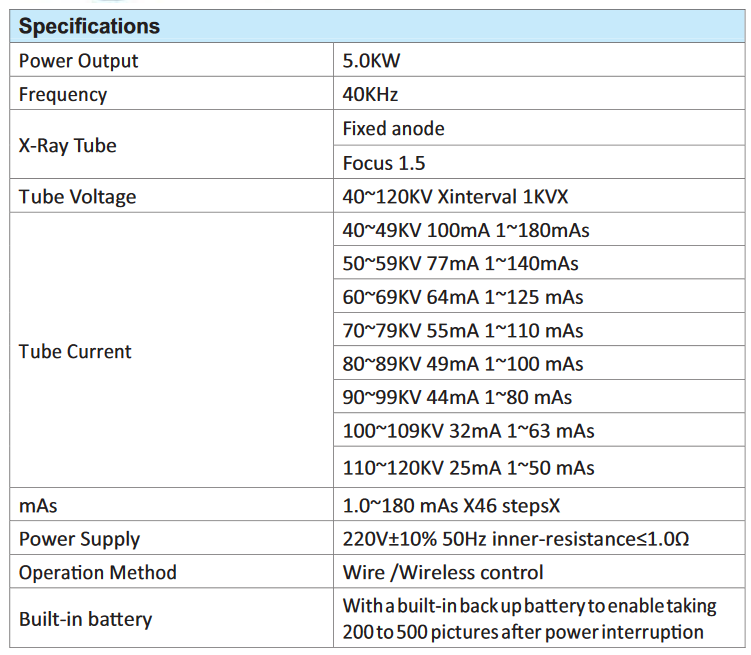

Technical Specifications

• Power Output: 5.0KW
• Frequency: 40KHz
• X-Ray Tube: Fixed anode, 1.5 focus
• Tube Voltage: 40–120KV (1KV intervals)
• Tube Current Range:
  • 40–49KV: 100mA (1–180mAs)
  • 50–59KV: 77mA (1–140mAs)
  • 60–69KV: 64mA (1–125mAs)
  • 70–79KV: 55mA (1–110mAs)
  • 80–89KV: 49mA (1–100mAs)
  • 90–99KV: 44mA (1–80mAs)
  • 100–109KV: 32mA (1–63mAs)
  • 110–120KV: 25mA (1–50mAs)
• mAs Range: 1.0–180 (46 steps)
• Power Supply: 220V ±10%, 50Hz (inner resistance ≤1.0Ω)

Dependable imaging. Maximum mobility. Zero compromise on performance.
